High Power Laser Diode 2W Focusable Blue Laser Module 450/445nm with TTL Driver

รายละเอียดสินค้า : High Power Laser Diode 2W Focusable Blue Laser Module 450/445nm with TTL Driver

Description Of Product

1.Wavelength:445nm~450nm

2.Output Power:2000mW

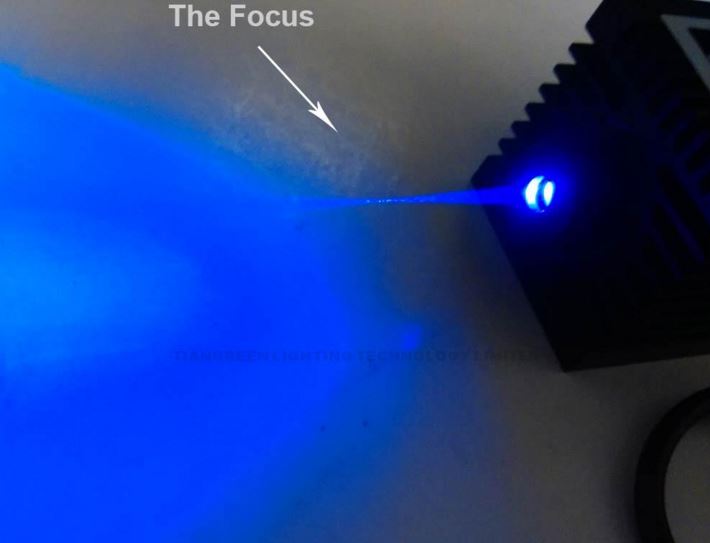

3.Adjust the focus:Yes(By fingers),

4.Working Voltage:12V

5.Power supply:>2A

6.TTL:Yes,White cable at + and Blue cable at -

7.TTL signal input 0~5V input.(0V OFF/5V ON)(TTL Modulation control the output beam OFF / ON )

please make sure the TTL input vlotage does not exceed 5V.othrewse it will brun the driver board.

TTL Modulation: Make sure input TTL level PWM dightal signal

8. Frequency for TTL control:0-20KHz

9.Duty cycle:input 1%-100%

10.Cooling mode:Heatsink and Fan

11.Material:Metal

12.Lens:Glass

13.Red cable at "+",Black cable at "-"

14.Size:Laser Module:80*40*40mm;Driver board:80*42*35mm

15.Package: High Power2000mw/2w 445nm 450nm  Focusable cutting Engraving  blue Laser  Module /diode

Features :

* It can adjust the focus(By Fingers),smallest dot

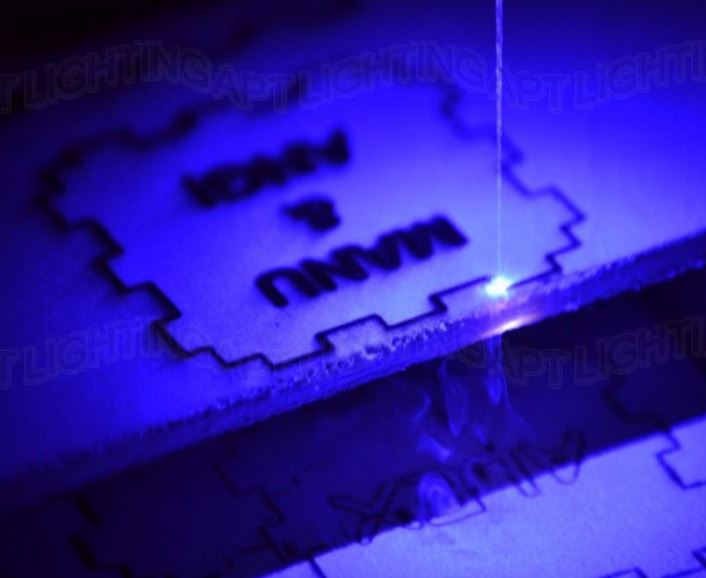

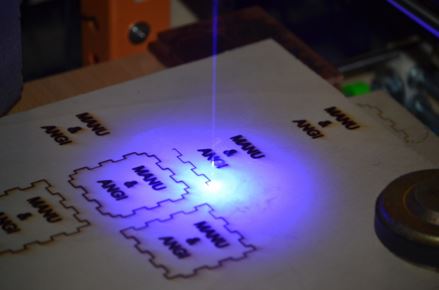

* Can carving wood (so easy)

* Can be use for CNC

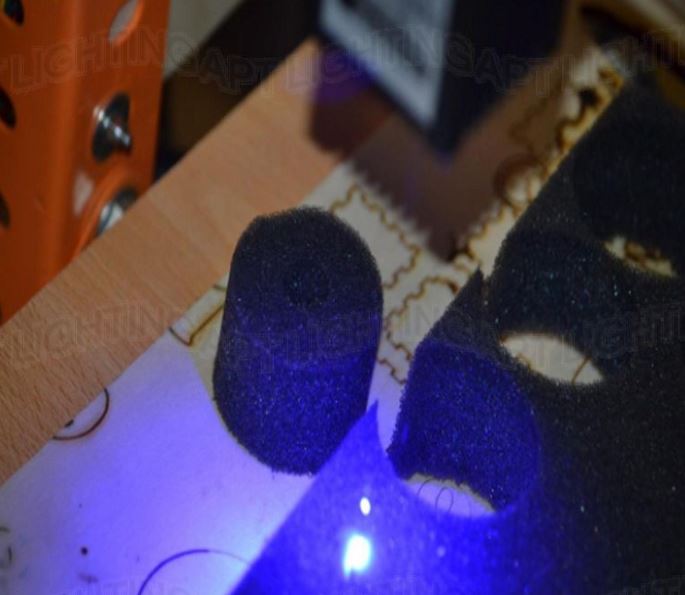

* It can burn plastic,paper,balloons,cigarettes,wood and so on

* Pointer distance >5000M

* Can work continuousely >12 hours
