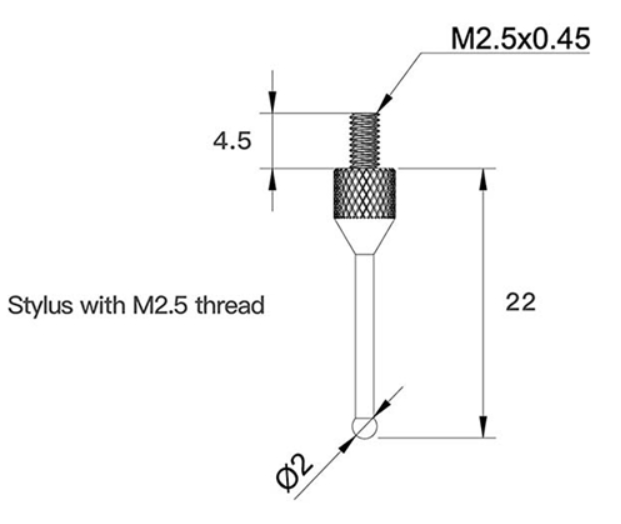

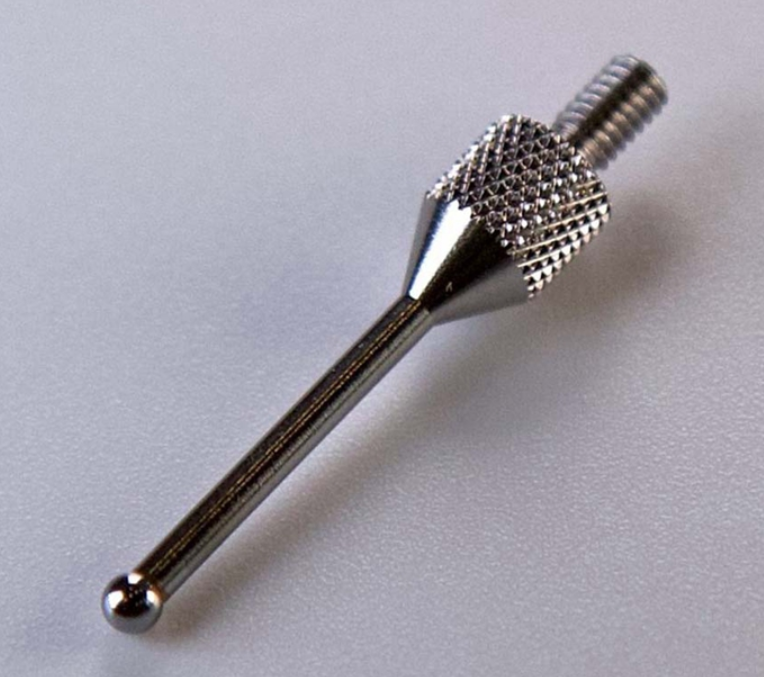

Stylus ( probe tip for V6 3D touch probe )

Model : 17HS8401     >>ตัวละ 480 บาท
Motor Frame Size : 41.5mm * 41.5mm * 47mm  (Length*Width *Height )

Shaft : 22mm(Lenght)  5mm(Diameter)

Outlet way : 4Pin plug line

General Specification:

Step angle accuracy: +/ - 5%(full step,not load)

Resistance accuracy: +/ - 10%

Inductance accuracy: +/ - 20%

Temperature rise: 80deg Max(rated current,2 phase on)

Ambient temperature ----------—20deg ~+50deg

Insulation resistance:100MΩ Min,500VDC

Insultion Strength--------500VAC for one minute
