Arduino Robot arm DIY Kit

Model : Arduino Robot arm  DIY Kit


Features:

Controller: Arduino 2560, ATMEGA2560

After the stepping robotic arm is closed (normal state).

Length 16.5 cm, width 21.3 cm, height 28 cm.

The maximum extension is 28 cm (base to top suction cup)

The effective travel range of the rail slide table is 39 cm.

The Grab weight of the robotic arm is about 500g.

With motion algorithm, x, y, z inverse solution, all metal architecture.

Independent PC software control, while supporting Bluetooth control, PC data com port and Bluetooth can be operated at the same time.

XYZ is mechanically classified as a switch and can be calibrated by mechanical homing. All metal architecture. The body adopts high-quality high-precision planetary gear motor, and each moving joint adopts high-quality high-precision bearings.

The host computer of the PC and the host computer of the mobile phone is an independently developed host computer. The host computer includes the PC and the mobile phone. Each movement can be edited as a separate movement speed and delay, the same group movement can be fast, slow, delay the set time. In the computer com serial port is not connected, it can be controlled through Bluetooth, and it can be controlled by PC and mobile phone at the same time. We will continue to update more features, and then provide a free upgrade of the upper computer software.

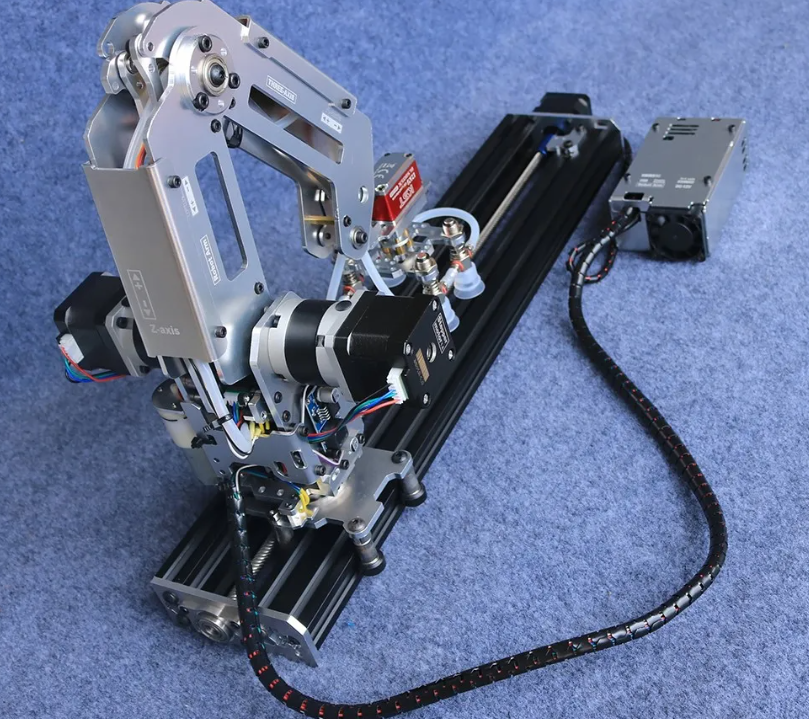

We will continue to develop more excellent products. : Mechanical arms and kits are shipped in bulk. Provide assembly instructions for users to assemble themselves. You need to prepare a 12v 5A power supply. Below is the actual shot

The E axis slide table can be installed according to the requirements. The total length of the E axis slide table is 540mm as shown below

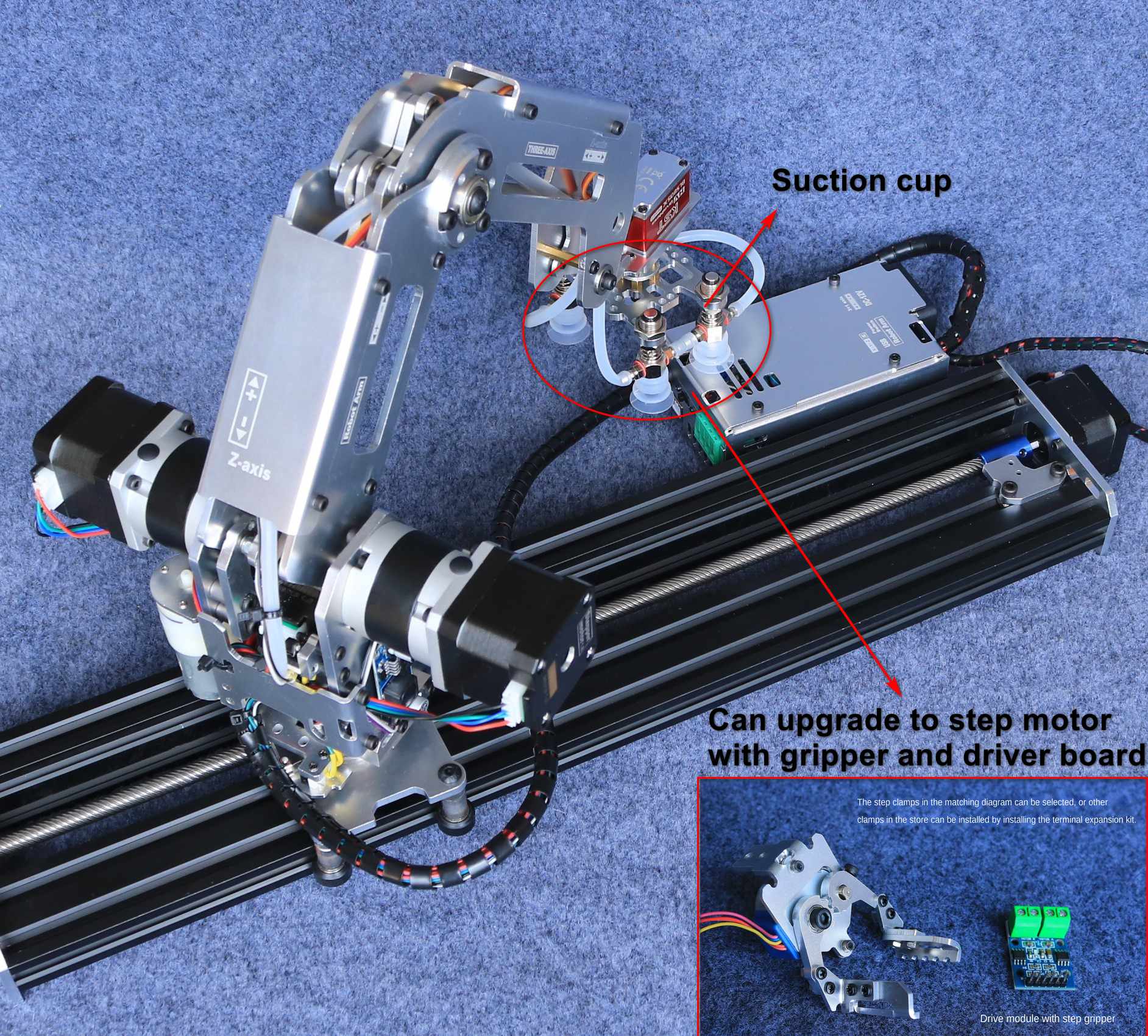

The stepping gripper shown in the picture can be optionally installed, or other grippers in the store can be optionally installed by adding an end expansion kit.

Package List:

* Full set all part: 1 set robot arm + control board + Power adapter(Free gift)+ slideway     +  4 suction cup + 1 set step motor claw + Servo parts(Free gift)
