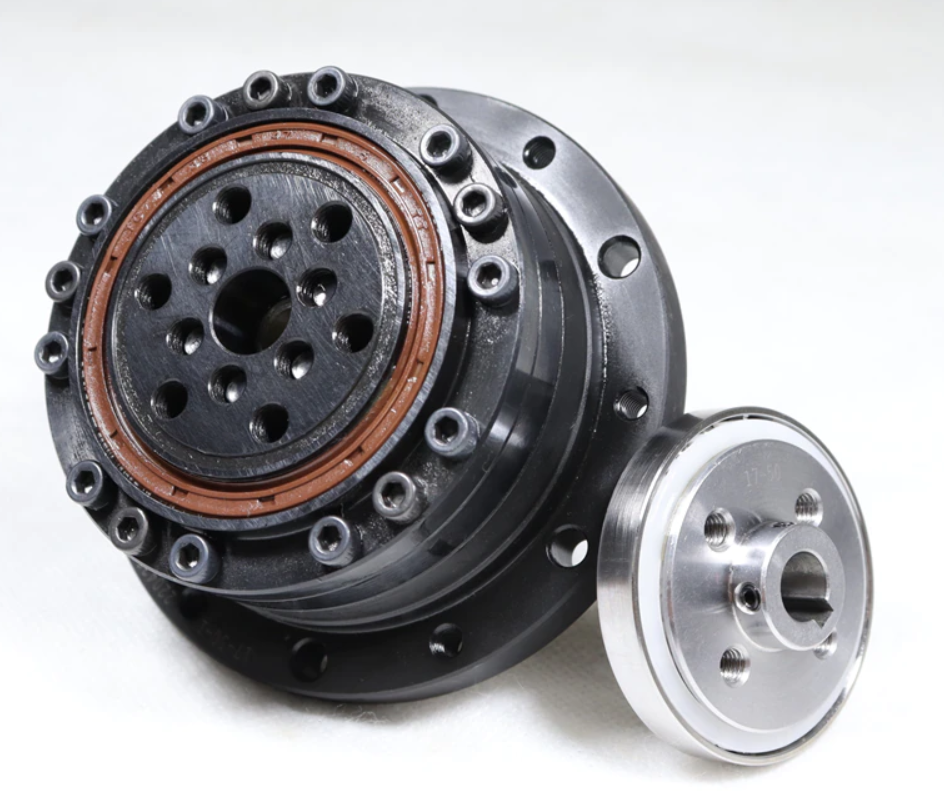

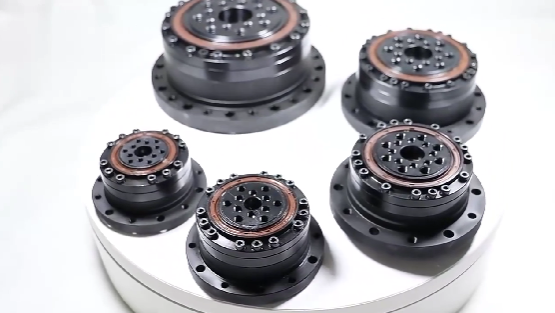

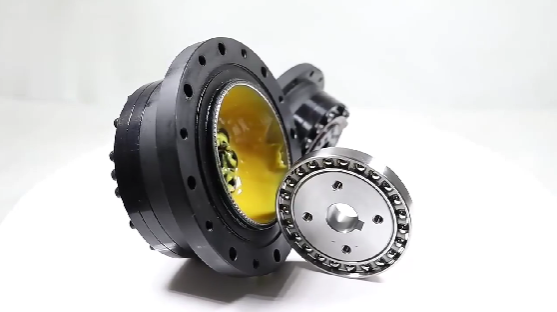

Harmonic Reducer Industrial WXS14-WXS32

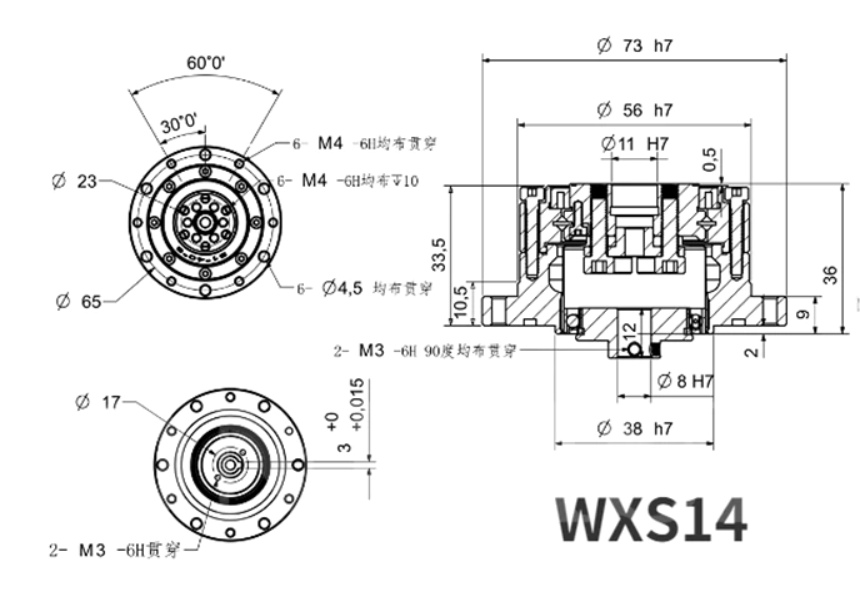

Model : Harmonic Reducer Industrial WXS14
  ( สอบถามก่อนสั่งซื้อนะครับ Tel : 0957824798 )

WXS14-80

Reduction ratio: 1 : 80

Rated torque when inputting 2000r/min: 7.8N.m,

Allowable peak torque when starting and stopping:  23N.m

Maximum allowable average load torque: 11N.m

Instantaneous maximum allowable torque: 47N.m

Allowable maximum input speed: 8500r/min

Allowable average input speed: 3500r/min

Moment of inertia: 0.033

Backlash: 10AS

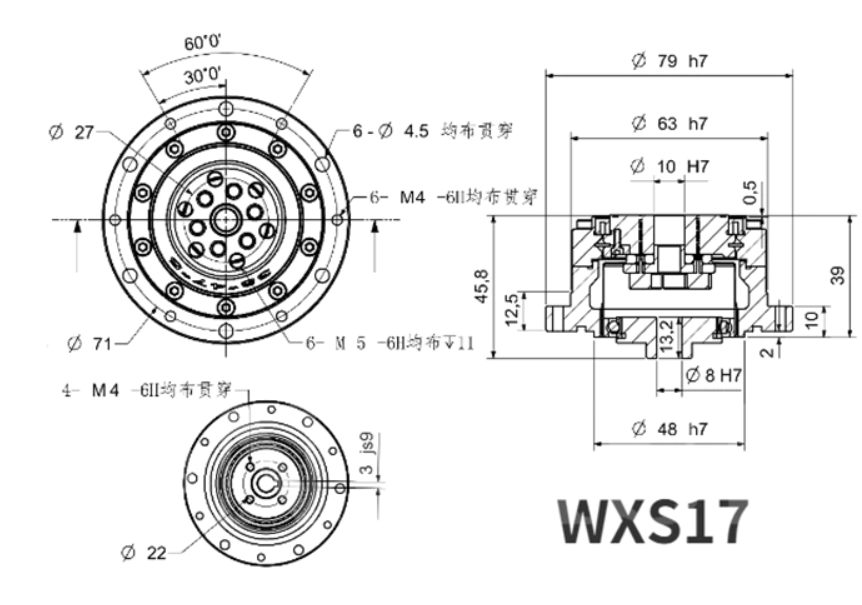

Harmonic Reducer Industrial WXS17

WXS17-80

Reduction ratio: 1: 80

Rated torque when inputting 2000r/min: 22N.m

Allowable peak torque when starting and stopping: 43N.m

Maximum allowable average load torque: 27N.m

Instantaneous allowable maximum torque: 87N.m

Allowable maximum input speed: 7300r/min

Allowable average input speed: 3500r/min

Moment of inertia: 0.079

Backlash: 10AS

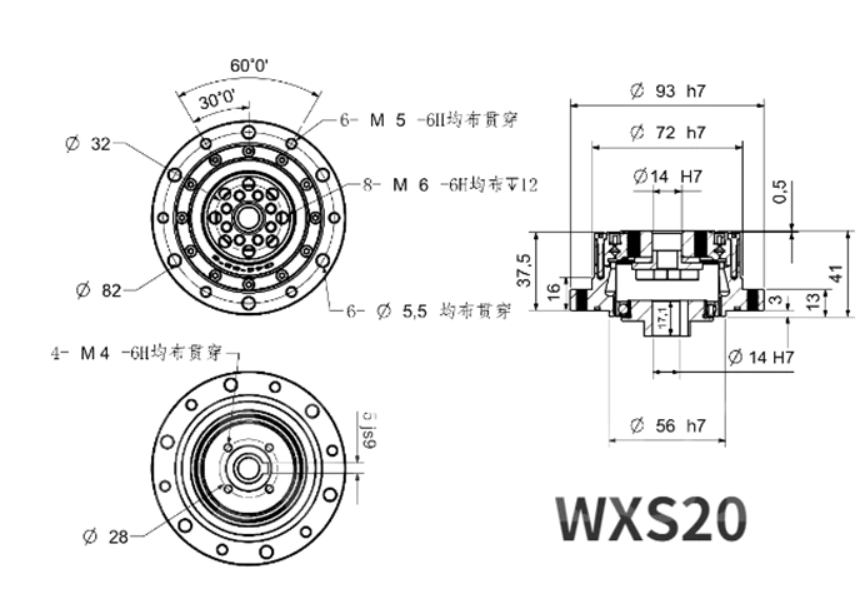

Harmonic Reducer Industrial WXS20

WXS20

Reduction ratio: 30, 50, 80, 100

Rated torque when inputting 2000r/min: 15N.m, 25N.m, 34N.m, 40N.m

Allowable peak torque when starting and stopping: 27N.m, 56N.m, 74N.m, 82N.m

Maximum allowable average load torque: 20N.m, 34N.m, 47N.m, 49N.m

Instantaneous maximum allowable torque: 50N.m, 98N.m, 127N.m, 147N.m

Allowable maximum input speed: 6500r/min

Allowable average input speed: 3500r/min

Moment of inertia: 0.193

Backlash: 10AS

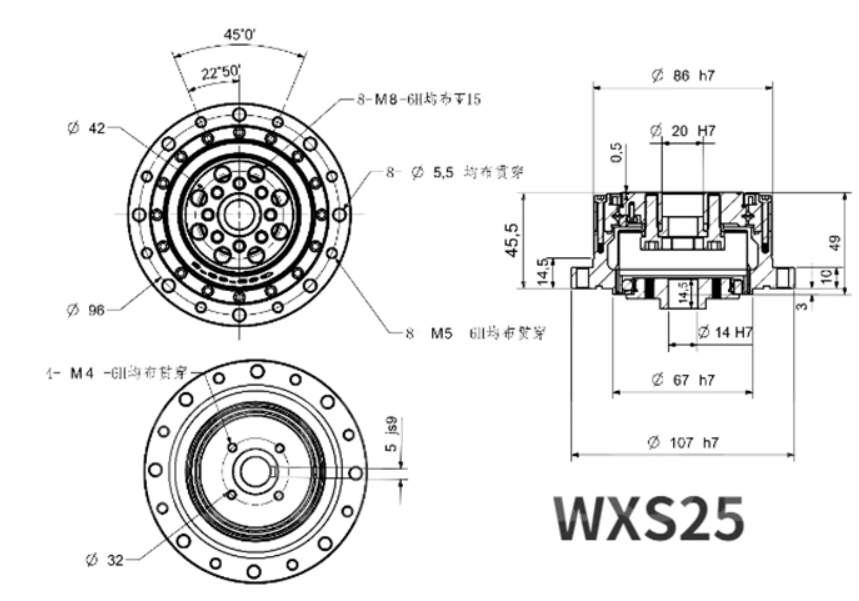

Harmonic Reducer Industrial WXS25

WXS25

Reduction ratio: 30, 50, 80, 100

Rated torque when inputting 2000r/min: 27N.m, 39N.m, 63N.m, 67N.m

Allowable peak torque when starting and stopping: 50N.m, 98N.m, 137N.m, 157N.m

Maximum allowable average load torque: 38N.m, 55N.m, 87N.m, 108N.m

Instantaneous allowable maximum torque: 95N.m, 186N.m, 255N.m, 285N.m

Allowable maximum input speed: 5600r/min

Allowable average input speed: 3500r/min

Moment of inertia: 0.413

Backlash: 10AS

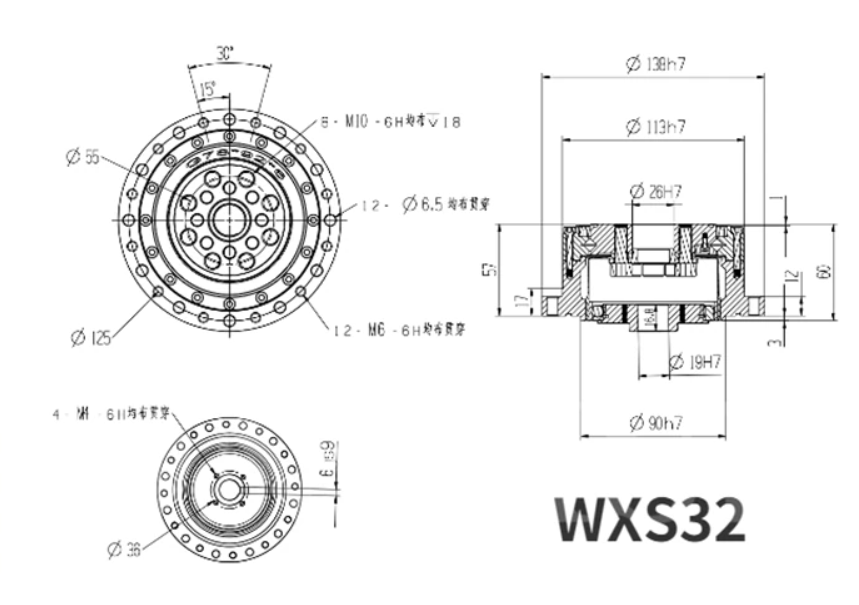

Harmonic Reducer Industrial WXS32

WXS32

Reduction ratio: 30, 50, 80, 100

Rated torque when inputting 2000r/min: 54N.m, 76N.m, 118N.m, 137N.m

Allowable peak torque when starting and stopping: 100N.m, 216N.m, 304N.m, 333N.m

Maximum allowable average load torque: 75N.m, 108N.m, 167N.m, 216N.m

Instantaneous maximum allowable torque: 200N.m, 382N.m, 568N.m, 648N.m

Allowable maximum input speed: 4800r/min

Allowable average input speed: 3500r/min

Moment of inertia: 1.69

Backlash: 10AS
