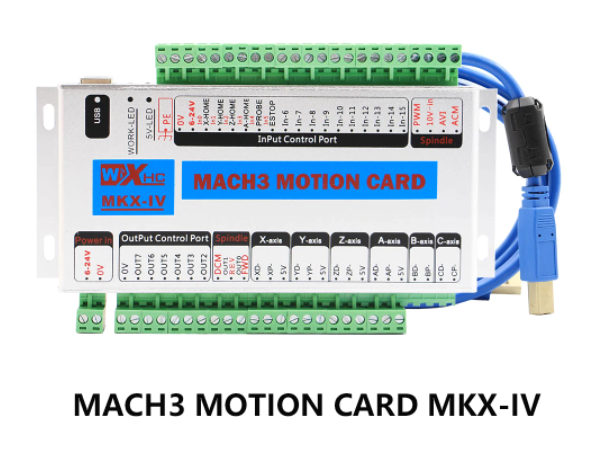

MKX-IV MACH3 USB Motion Control Card

Model : MKX-IV MACH3 USB Motion Control Card

MKX-V has 3 series：Works with Mach3 CNC system under all windows platform

MK3-IV 3 axis motion card.   5,800 Bath
MK4-IV 4 axis motion card.   7,100 Bath
MK6-IV 6 axis motion card.   12,500 Bath

• Fully supporting all Mach3 versions

• Full support for USB hot-swappable, the card is Monitoring

• USB connection status at any time.

• Supports Up 4-axis

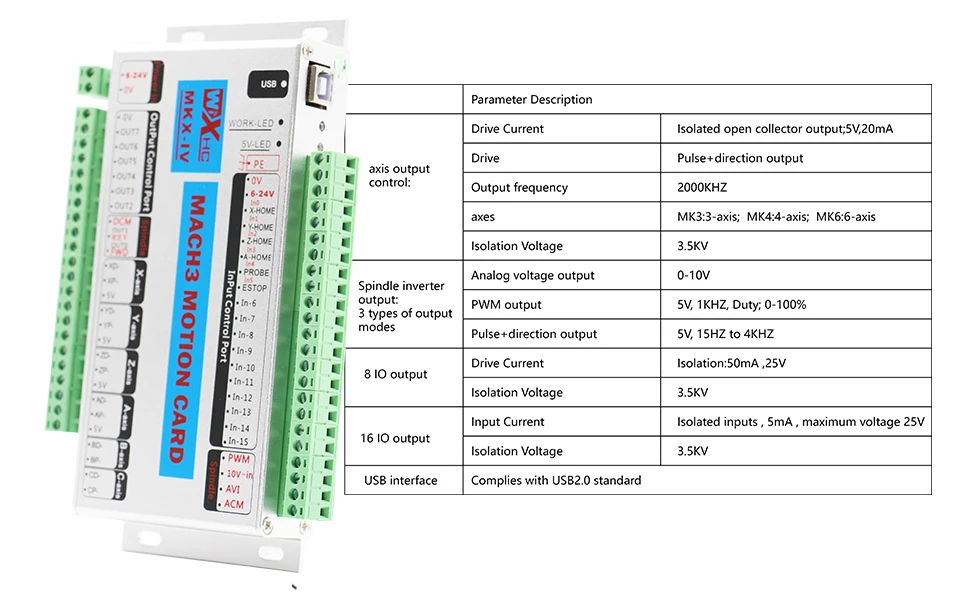

• Maximum step-pulse frequency is 2000KHz

• Status indicator LED can be useful to show the USB

• connection, and working stauts by flashing.

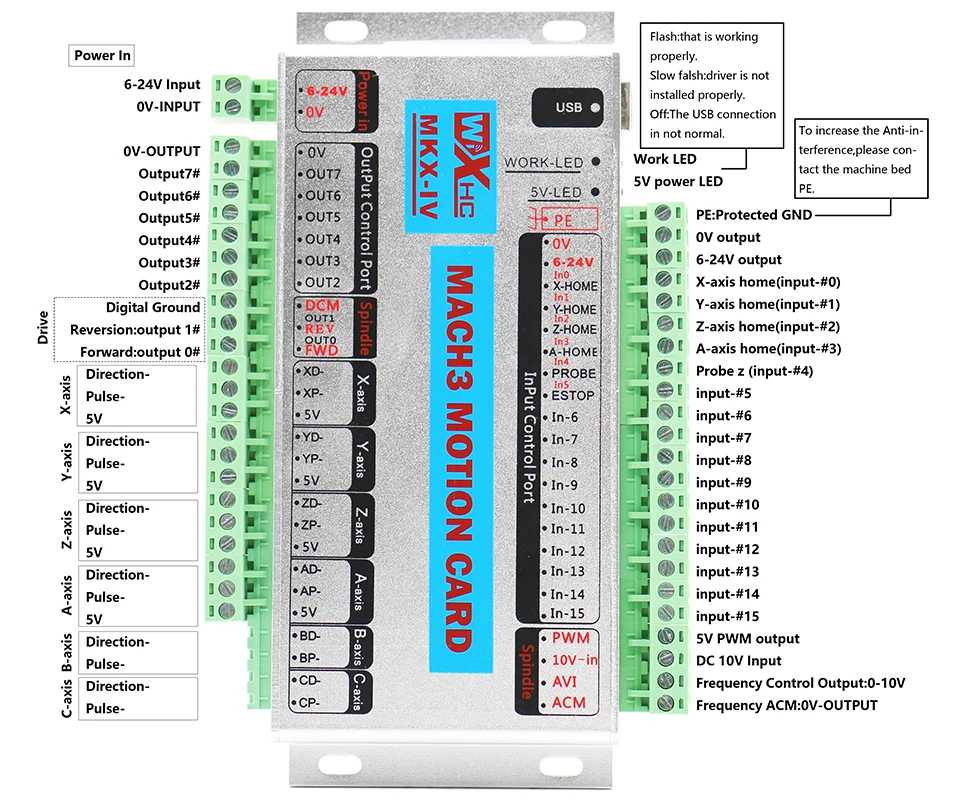

• 16 general-purpose input

• has speed function, the spindle actual speed Mach3

• interface in real-time display

• all IO-port isolation, interference, stable performance

















  If the inverter is turned on , the control card is not working properly because of interference caused by the inverter; Replace inverter.
