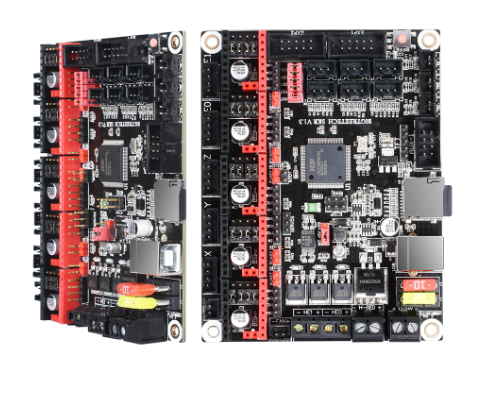

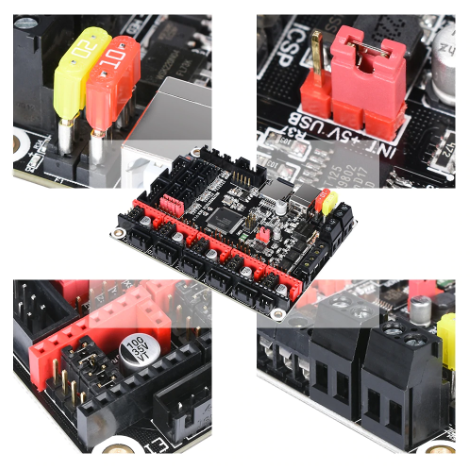

SKR V1.3 Smoothieboard 32Bit+TFT35

SKR motherboard parameters:

Appearance size: 110*85mm

Mounting size: 102*76mm

Microprocessor: ARM cortex-M3 CPU

Input voltage: DC12V-DC24V  5A-15A

Motor driver: support TMC2208, TMC2130, ST820, LV8729, DRV8825,

A4988, can be independently external motor drive

Driver working mode support: TMC2130SPI, TMC2208UART

Motor drive interface: X, Y, Z, E0, E1, five (each has a reextendable interface),

Up to 256 subdivisions

Temperature sensor interface: TH0, TH1, TB, 3 channel 100K NTC (thermal resistance)

Display: 2.8 "TFT, 3.5" TFT, LCD2004, LCD12864

PC communication interface: square USB, easy to plug, communication baud rate of 115200

Expand the interface function support: Resume Printing While Power Off,Filament Break Detection, Automatic leveling, BL Touch

Supported machine architecture: XYZ, Delta, Kossel, Ultimaker, Corexy

For more details about SKR V1.3, you can check out this link：

https://github.com/bigtreetech/BIGTREETECH-SKR-V1.3

Marlin2.0 - Driver  Smoothieware Drive:

https://www.dropbox.com/sh/0dryz9lvtnr62z0/AAACZTh2iTolNNT0Pya7VhRPa?dl=0
