Close loop stepper motor nema23 2.2Nm

 Hybrid stepper servo drive system is a perfect combination of servo control technology in digital stepper drive. The product uses an optical encoder to sample position feedback every 50 microseconds. Once the position deviation occurs, the position deviation can be corrected immediately. This product is compatible with the advantages of stepping technology and servo technology. It has the characteristics of small heat generation, small vibration and fast acceleration. It is a highly cost-effective motion control product.

• No lost step, accurate positioning

• 100% rated torque drive motor

• Variable current control technology, high current efficiency

• Low vibration and smooth operation at low speed

• Use Boma to select position over tolerance threshold and alarm polarity

• Rich output control

• Single and double pulses can be selected by Boma

• Built-in acceleration and deceleration control to improve start-stop smoothness

• Users can customize the subdivision

• Compatible with 1000 line and 2500 line encoders

• General application parameters do not need to be adjusted, the factory has been set up

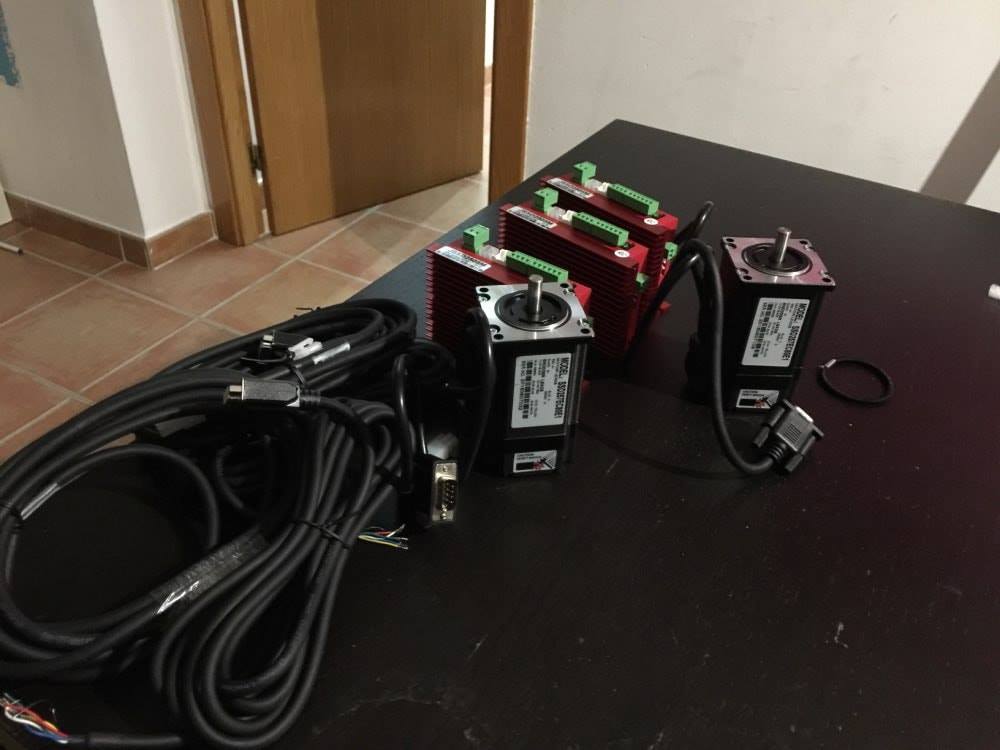

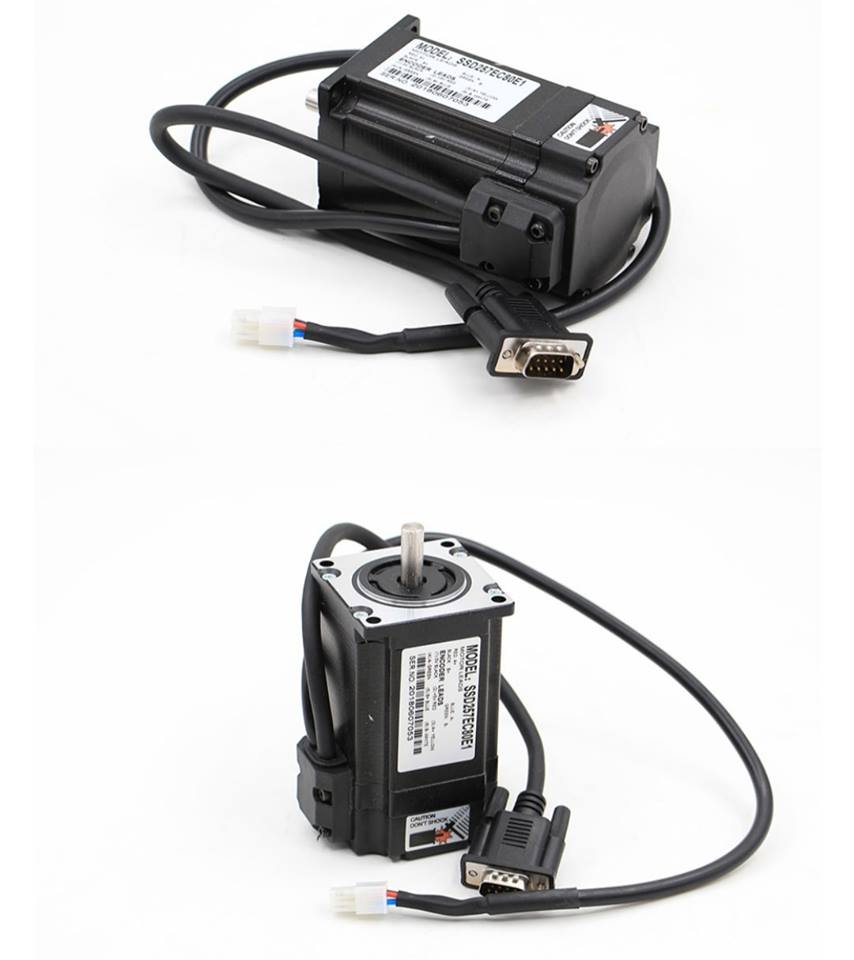

1pcs & Nema23 2.0Nm Closed Loop Stepper Motor SSD257EC80E1

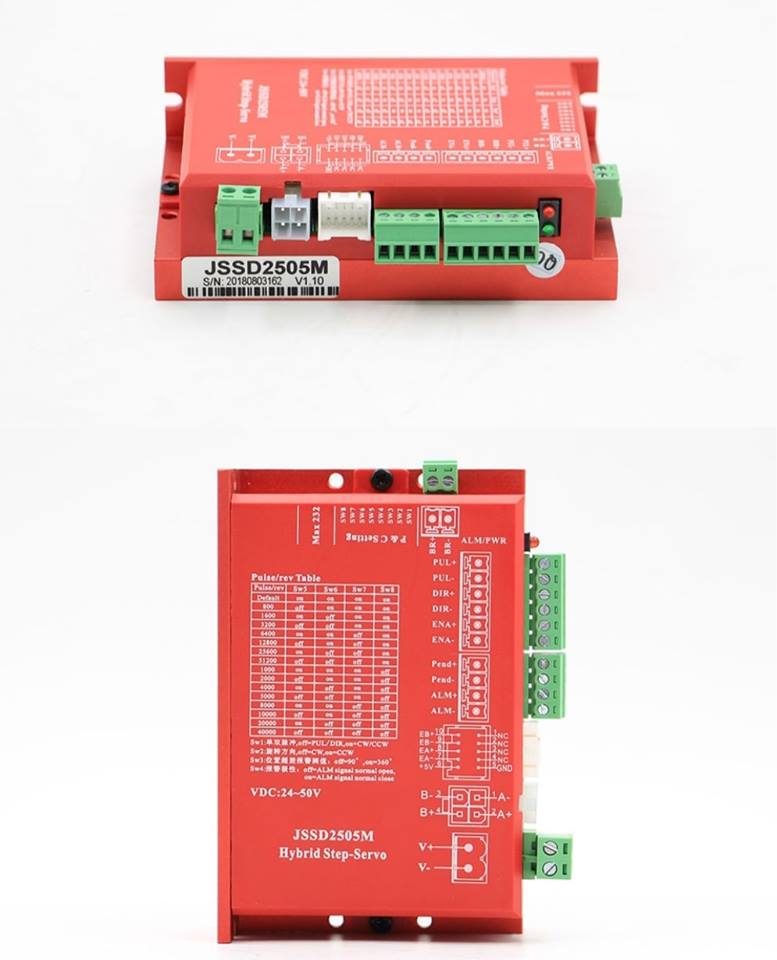

1pcs & Motor Driver JSD2505M

1pcs & 2 meters Power Cables

1pcs & 2 meters Encoder Cables

General Specification:

Phase: 2

Step Angle: 1.8 deg

Current: 5A

Resistence: 0.36Ω

Inductance: 1.74mH

Holding Torque: 2.0Nm

Shaft Diameter: 8mm

Brake control signal output ports

ALM and PEND Signal Output Ports

Control Signal Input Ports

Encoder Feedback Signal Input Ports

Power Interface Ports
