Plasma Cutter IGBT Digital Control CNC Pilot Arc Non-HF Cut55

Description:

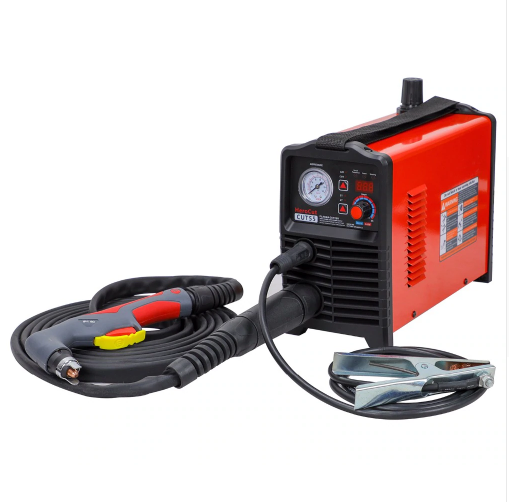

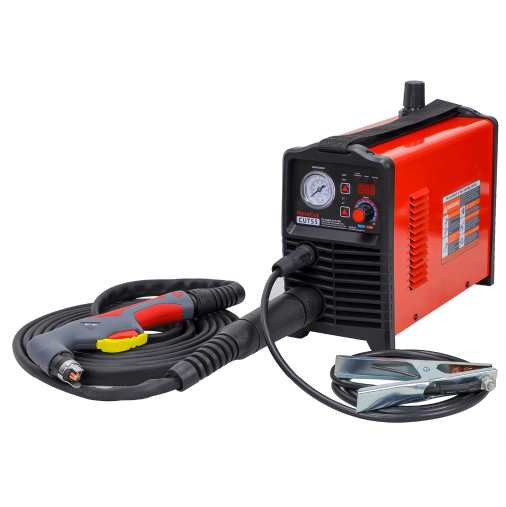

IGBT plasma cutting machine CUT55 is developed by HeroCut. Non-HF pilot arc, Small compact efficient IGBT base Digital controller. This machine is one of the most portable single phase inverter cutting machines on the market. With quality torch fixed safety plasma central plug, The fast connection quick to release torch and ground clamp. The machine is easy to operate in terms of settings, Machine comes with 2T/4T function, Air checks, Display show cutting amps help user adjust the current to cut different metal. Air pressure gauge can show air press help user adjust different air cut different thick metal. Cutting thickness for this machine is 3/4'' at 75 psi in good performance, Max cutting thickness can reach at 1'' if needed for a short run. Torch standoff and 2 set of consumables included.

• Pilot Arc Non-HF & Non-Touch, 2T/4T function
• Quality plasma torch fixed safety plug
• Digital controller, Air pressure & Amps display
• Dual voltage 120v / 240v;
• Built in Regulator, Auto release water
• Inverter 45Amps power supply, 60% Duty cycle at 45amps, 100% at 35amp
• Good work with CNC system
• The power plug in photo only supply for USA market, No power plug come with machine for other country.

Accessories:

• IPT60 Non HF Pilot Arc torch with 5 meters cable.
• Earth clamp with 3 meters cable
• 3 meters air hose
• 5 tips & 1 electrode come with machine
• 2 pcs hose clamp
• Manual
