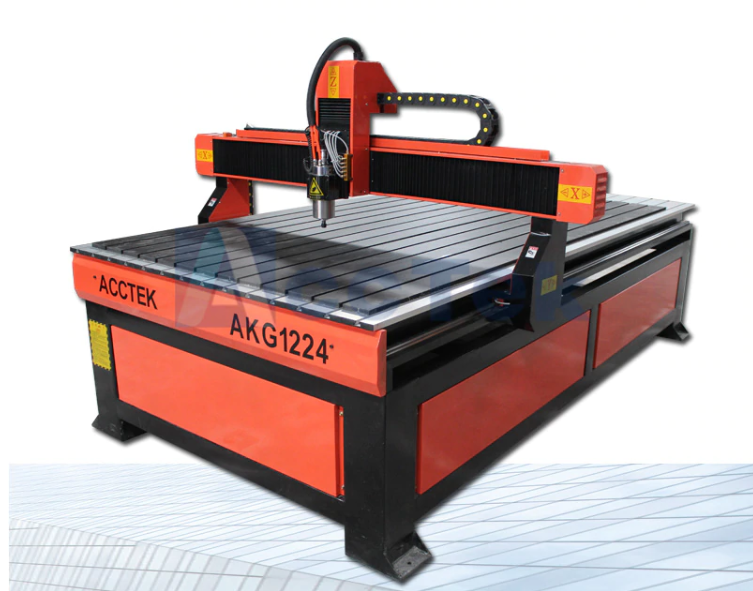

CNC 1224

X,Y,Z Working Area

1200x2400mmx150mm

X,Y,Z Traveling Positioning Accurate

±0.03/300mm

X,Y,Z repositioning Positioning Accurate

±0.02mm

Table Surface

T-slot work table

Vacumm table and t-slot combined

Frame

Welding steel

X, Z Structure

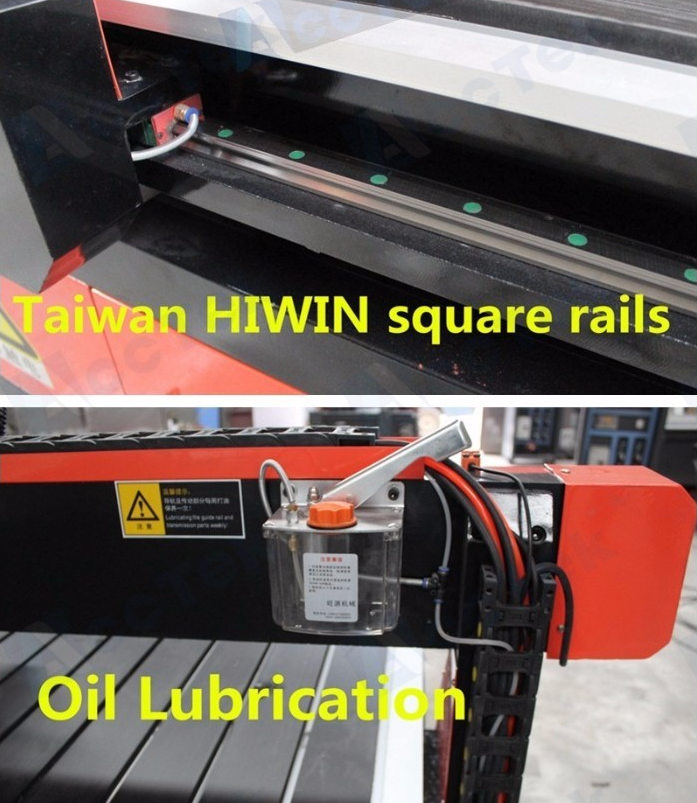

Ball Screw

Y Structure

Linear Bearings and Ball Screw

Max. Rapid Travel Rate

8000mm/min

Max. Working Speed

6000mm/min

Spindle Power Motor

1.5KW water-cooling spindle

Spindle Speed

0-24000RPM

Drive Motors

Stepper system

Working Voltage

AC 220V/50HZ

Command Language

G code

Operating System

Mach3

Interface

USB

Collet

ER11

X,Y Resolution

<0.01mm

Running Environment

Temperature: 0°C~45°C

Relative humidity: 30%~7
