DDCSV2.1 500KHz CNC 3 Axis Motion Control System


DDCSV2.1 has made the following changes on the basis of DDCSV1.1:
1:The input signal is modified to support the NPN switch;
2: Support limit and the home share the input port;
3: Use the more stable FLASH, to ensure that no program loss;
4: Upgrade algorithm, support soft interpolation, modified V1.1 version of arc
interpolation bug;
5: Upgrade the power module, the system is more stable.

Performance parameter:

• Ordinary digital input interface of 16-circuitoptocoupler coupling isolation
• Ordinary digital input interface of 3-circuit optocoupler coupling isolation
• Output interface of 0-10V spindle control port with analog quantity(can be modified as PWM output);
• Support the 3 axis stepper motor control, the highest control pulse output of single axis is 500KHz;
• ARM9 main control chip;
• FPGA core algorithm chip;

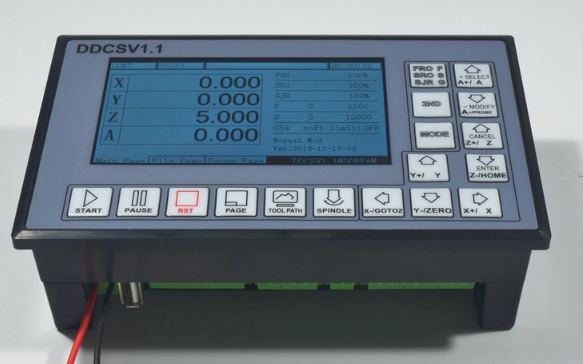

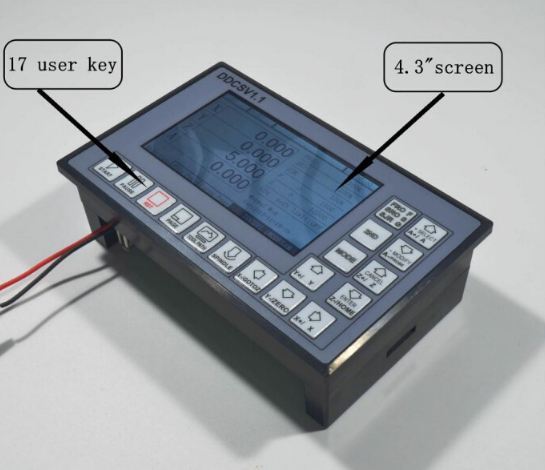

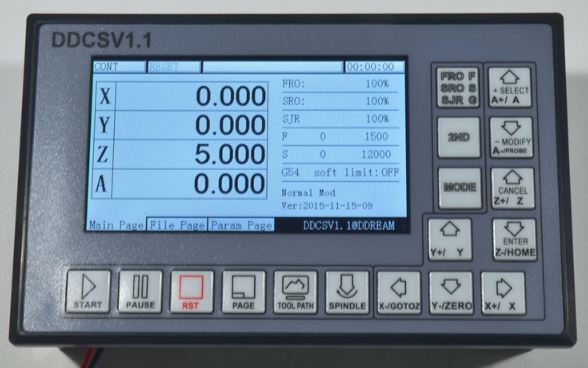

• 4.3 inches TFT screen, resolution ratio: 480*272;
• 17 operational keys;
• The main control equipment is 18V-32V power input, the current capacity isrequired not to be lower than 0.5A;
• Support the USB flash disk to read the G code,and the size of G codefile has no requirement;

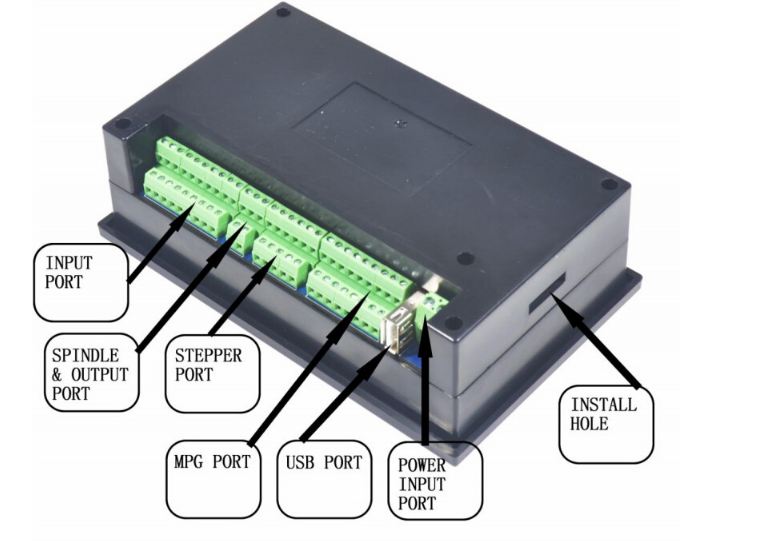

• Be equipped with MPG port and support digital display MPG as well as support the general MPG in the market.
• Support the panel key with single-axis manual operation, manual step and CONToperation;
• Support the operation of quickly specify the running position;
• Support the multi coordinate systems (with automatically saving function in case of power cut);
• Support the function of saving data automatically after power down (press the start to automatically save the data in the operation, automatically save the data after power down)

Outward Appearance, Structure and Size:

• The DDCSV1.1 adopts the embedded shell structure, which can punch a square hole on the equipment cabinet and then embed this equipment in the squire hole.
• Use two locking mechanism from the inside can fix this equipment on the equipment cabinet, with easy installation. The dimension figure of the product's outward appearance are as picture 1-1 and picture 1-2.

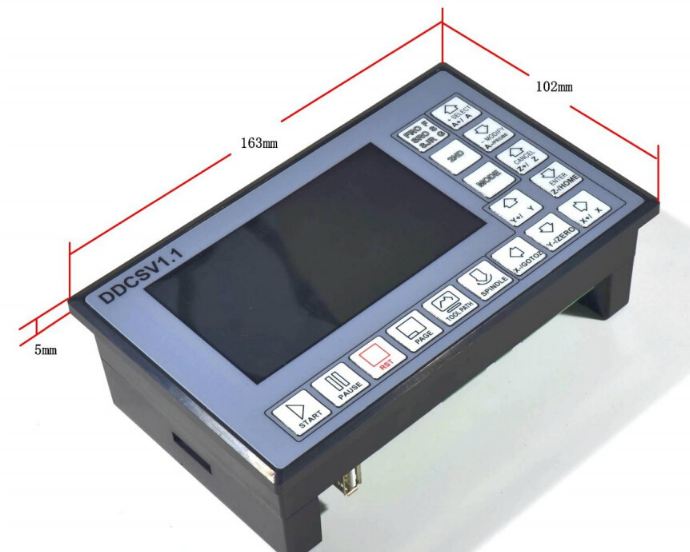

• The panel size of the product is 163mm*102mm*5mm;

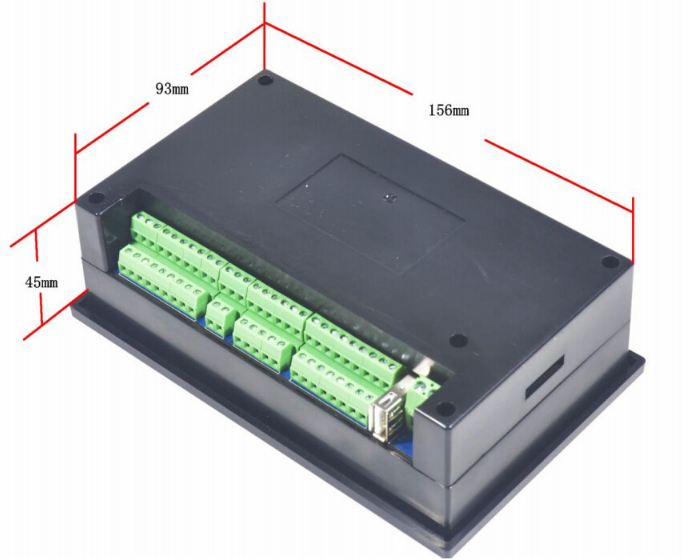

• The size of main body is 156mm*93mm*45mm;
• The size of square hole installed on the equipment cabinet is 156mm*93m

Package included:

1 x 3 axis motion controller

1 x 4GB USB Flash Drive

1 x USB Extension Cable
