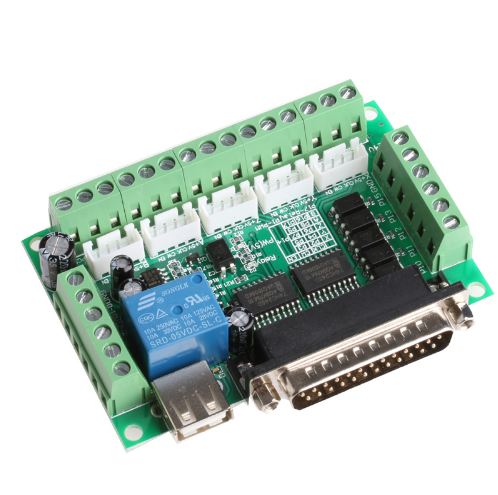

5 Axis CNC Breakout Board With Optical Coupler for MACH3

Description:

• 100% brand new and high quality
• Material: Electrical components
• Color: See pictures
• 1, fully support of MACH3 and other computer software support for parallel port control.
• 2, USB power supply and peripherals powered phase separation to protect computer security.
• 3, peripheral wide voltage input,12-24V, and anti-reverse function.
• 4, all of the input signal, all the light lotus isolated, which can be accessed emergency stop on the knife, the limit to protect computer security.
• 5, all the way to the relay output port, control spindle switch. Output port P17 mouth.
• 6, all the way through the optocoupler isolated 0-10V analog voltage output can be controlled with the corresponding analog interface converter to control the spindle speed. Output port P1 port.
• 7, open all 17 ports, which can be accessed with the optocoupler drive, 5-axis stepper motor can be controlled.
• 8, P1 as PWM outputs can be controlled with optocoupler input spindle governor.
• 9, can be accessed by a common cathode or common anode input level to 5V drive.
• Size: See the pictue
• No retail packagg
• Quantity: 1Pc
• Note: Due to the difference between different monitors, the picture may not reflect  the actual color of the item. Thank you!!

Package includes:

• 1Pcx 5 axis CNC Breakout Board with optical coupler for Stepper Motor Driver MACH3
