3 Axis 6040 1500W Mahc3 CNC

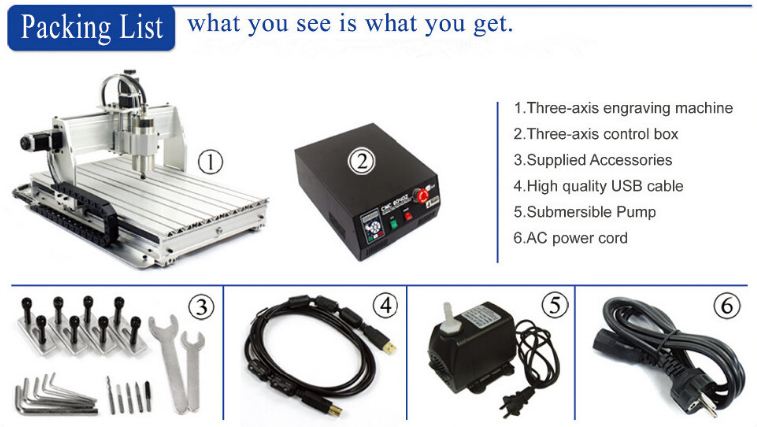

Package include:

• 1 x 6040Z-S80 1500W 3-AXIS CNC Router machine
• 1 x 3-Axis Control box
• 1 x DB25 cable
• 1 x Power cable(US,UK,EU,AU plug)
• 1 x Tool box and tools
• 3 x Aixs stepper motors
• 1 x 1.5Kw water cooled spindle
• 1 x 1.5Kw Inverter
• 2 x connect wires

Specifications:

Max. working stroke:  XYZ=375x575x68mm

Acceptable material thickness: ≤95mm

Dimensions:      870x660x520mm

Frame Material: 6061-T5 extruded aluminum alloy

Rail type:          Chromeplate shaft+Linear Bearings

Screw Type:    Ball screw,Diameter 16mm,screw thread pitch 5mm

Mechanical Resolution: XYZ-axis: 0.0025 mm/step

Positioning accuracy:  0.05mm

Spindle Motor:        Powerful Brushless frequency spindle,1500W

Revolution Speed:  3000~24000rpm/min

Collet type:           ER11(equipped with 6mm collet)

XYZ Motor:           Nema23 3A stepper motor

Stepper Drives:   High Quality digital independently driver

Feed rate:            300~5000mm/min

Communication Interface: DB25 parallel port(pls use Mach3,KCAM4,EMC2 software)

Command Code:  G code/.nc/.ncc/.tab/.txt

Power Supply:       Input 220V~240VAC (50/60Hz),or 100~120VAC

Operation Environment:  Temp: 5°~40° C; Humidity: 35 to 80%
